Heavy Duty Sub soiler
Heavy Duty Sub soiler
Heavy Duty Sub soiler
Heavy Duty Sub soiler
Heavy Duty Sub soiler
Heavy Duty Sub soiler

Heavy Duty Sub soiler

Features

  • Tynes are specially designed and capable of up to 70 cm deep.

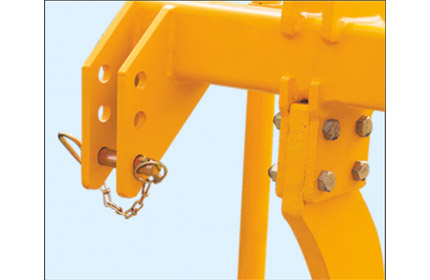

  • It can be safety used for heavy duty applications, as the shear bolt arrangement protects the implements from getting damaged due to hidden obstacles like underground stones and roots.
  • Swan sub soiler helps to increase soil turning by reaching deeper organic matter layers.


Advantages

  • It provides a simple and economical way to obtain boosting crop yields and profits.
  • SWAN AGRO Sub Soiler are deep tillage implements specially designed for breaking up hard pan layers and loosening the subsoil allowing better drainage, root growth and mineral osmosis.

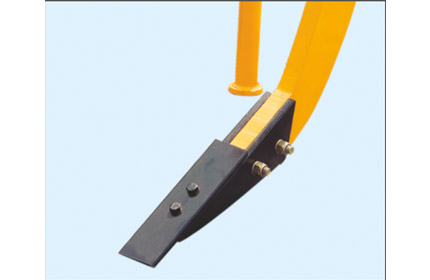

  • The heavy duty chisel pointed shear shatters the soils well below the surface thus increases retaining capacity of water.
  • SWAN AGRO Sub Soiler series helps to preserves moisture during high rainfall which is very important for the crop to withstand low rainfall or drought periods.

Heavy Duty Sub soiler

Technical Specifications

Description/Model NSE HSS 1
Frame (mm) 125 × 125 × 6 Sq. Pipe
Length (mm) 690
Width (mm) 800
Height (mm) 1220
Width of Cut (mm) 70
Tyne (mm) 150 × 36
No. of Tyne 1
Mounting Category Cat - ll
Weight (Kgs. Approx.) 105
Shovel (mm) 70 × 10 × 305
Tractor Power (H.P) 40-50
