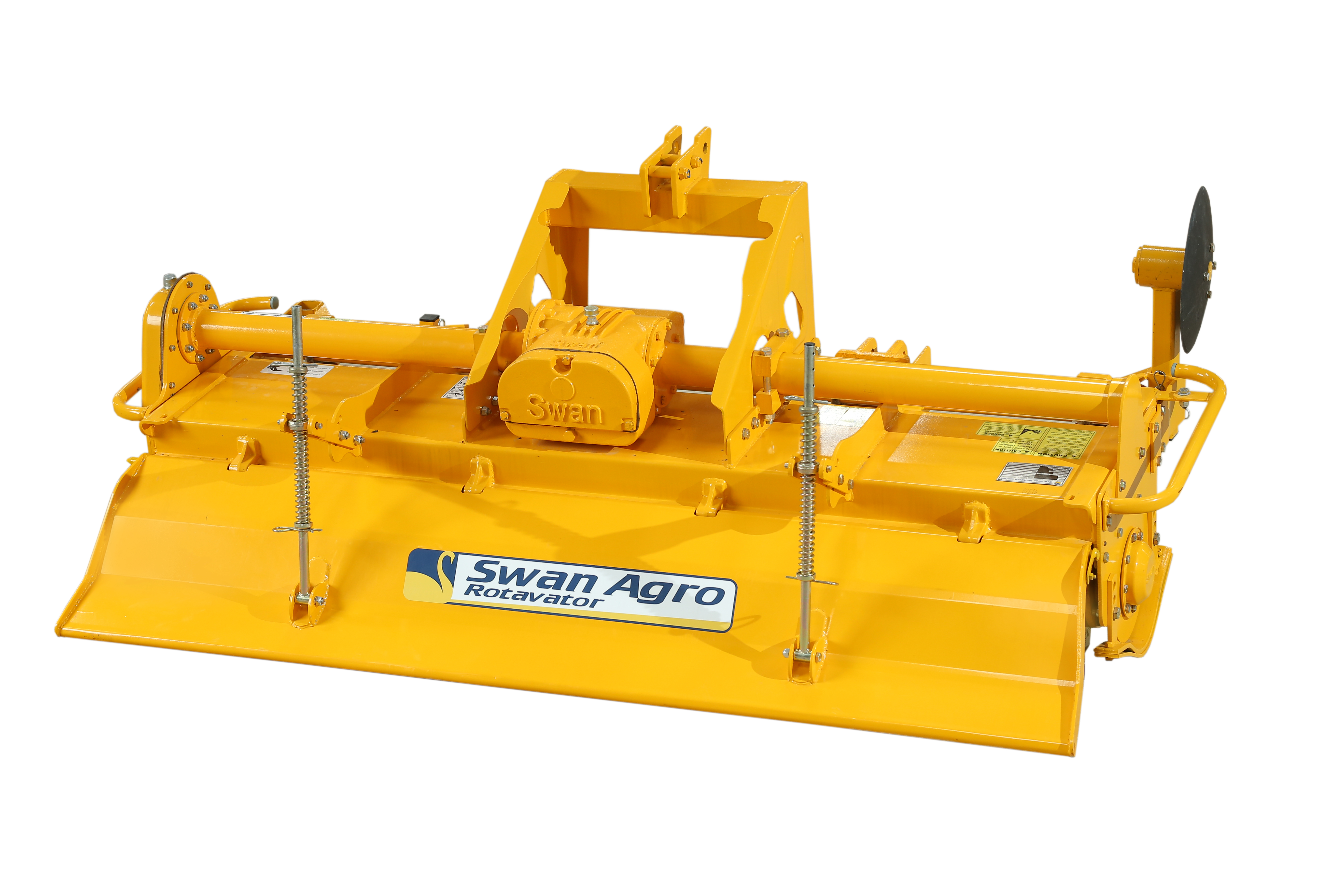

DUSTER SERIES ROTARY TILLER

DUSTER SERIES ROTARY TILLER

Swan Agro Duster Series Rotary Tiller is used for Light soil operation with light duty Gear Box.

The application includes: Soil conditioning, weed control, fertilizer incorporation, seedbed preparation and puddling in wet land.

Most suitable for large & medium farmers and field preparation for crops like sugarcane, cotton, rice, potato, wheat, vegetables and dry land crops.

Available in Size :  5’, 6’, 7’

Enquiry
DUSTER SERIES ROTARY TILLER

Features

  • Specially designed for light weight Rotary Tiller requirements for Light Soil operation.
  • Specially designed Leakproof Aluminium Casting Gear Box.
  • Baldes are Tempered & made of Boron Steel from Italy. Available with L-Type or C-Type Blades- Interchangeable.
  • Export Quality Heavy Duty Gear Box.
  • Rotary Tiller frame is made of Heavy Duty Pipe.
  • Nut and Bolt is made of High Tensile Steel (10.9 Grade).
  • Side Transmission is driven through Gears providing Smooth Drive & Longer Service Life.
  • Save Fuel & Time.
  • Available from 1.25 mrt to 2.00 mtr size for 30 H.P to 60 H.P tractors.

Advantages

  • Suitable for operation on Light Soil.
  • By combining disking, cultivating and planking, rotavator prepares soil quickly for sowing.
  • Rotary Tiller helps in reducing tractor’s wear and tear, save fuel & time, maintain the moisture of the soil.
  • Rotary tiller prepares all type of soil – Wet & Dry.
  • Stubbles and residue of previous crop is chopped into pieces and thoroughly mixed in soil to form organic manure.
  • Rotary Tiller is extremely helpful in Sugar Cane, cotton, Paddy and Vegetables cultivation.
  • Heavy Duty PTO Shaft with Shear Bolt for overload protection.
DUSTER SERIES ROTARY TILLER

Technical Specifications

Description/ Models NSEDS RT 125 NSEDS RT 150 NSEDS RT 175 NSEDS RT 200
Overall Width (mm) 1550 1800 2050 2300
Tillage Width (mm) 1250 1500 1750 2000
Tillage Depth (mm) 120 - 150
Gear Box Single Speed/ Multi - Speed
Side Transmission Gear Drive
PTO Speed (Rpm) 540/1000
No. of Blades 30 36 42 48
Blade specifications L type 5" L type 5" L type 5" L type 5"
Weight (Kgs. Approx.) 330 350 370 390
Tractor Power (H.P) 30 - 35 35 - 45 45 - 50 50 - 60
